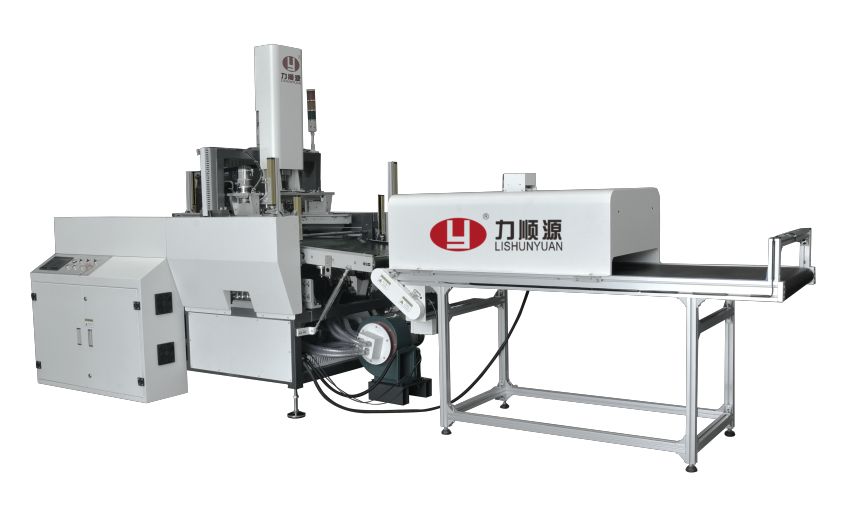

Silk screen glue applying machine with Dual precise positioning
This machine consists three parts of paper feeding, position correcting and glue applying.
It can realize precise glue applying, printing and UV coating with servo motors and dual positioning.
Parameters:
| Voltage | AC/380V |
| Power | 5KW |
| Air pressure | 0.6mpa |
| Applicable paper thickness | 200-400gsm |
| Sizes of silk screen frame | 500-1100mm*300-600mm*25mm |
| Stacker(Single sheet) | 300-900mm*150-400mm |
| Stacker(Dual sheet) | 170-390mm*150-400mm |
| Capacity | 15-25pcs/min |
| Paper stacking height | 380mm |
| Max.glue applying sizes | 900*400mm |
| Machine weight | 1300KG |
| Machine size | 2560mm*1880*2290mm |
Product features:
1,Even glue applying on specific area of the paper.
2,Dual precise positioning.
3,No lower limit of paper sizes,
4,Also can be used for printing & UV coating with different film.
5,Driven by servo motors
6,Realize glue applying, printing & UV coating for 2 paper at the same time.

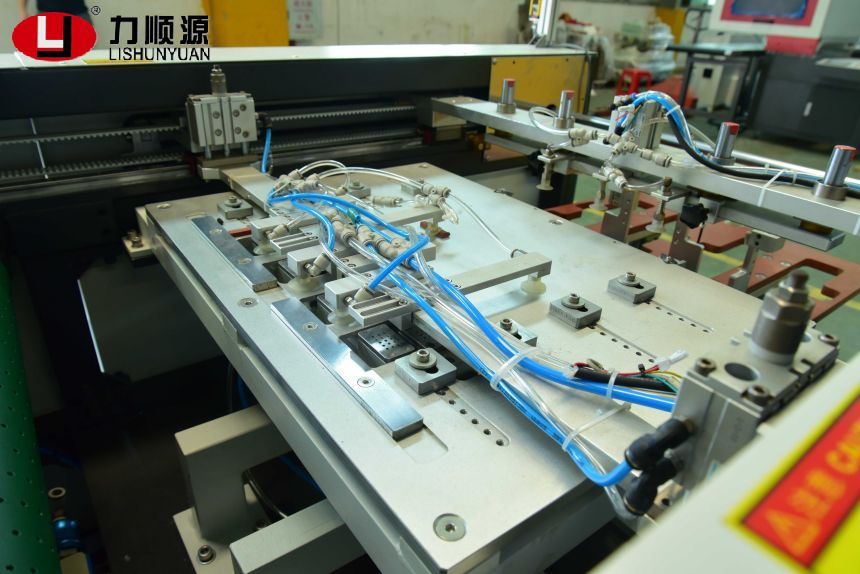

Paper correcting unit

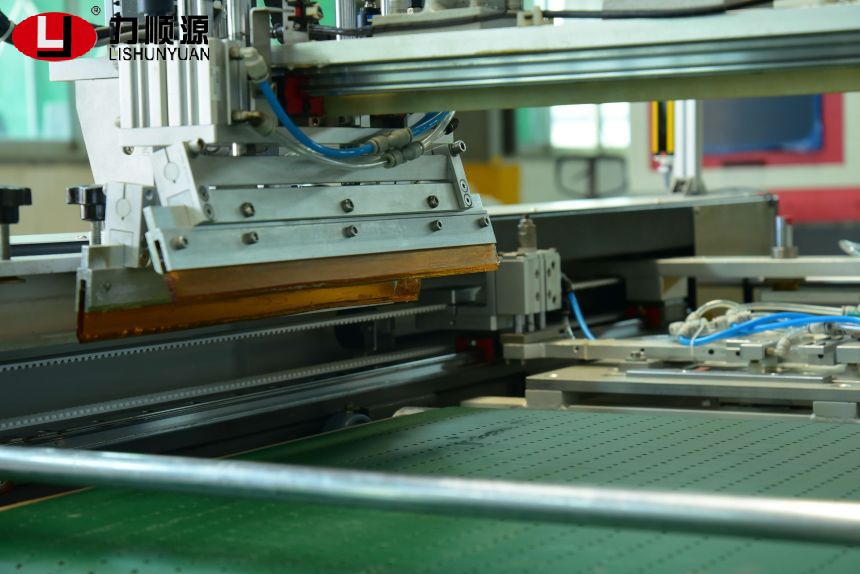

Silk screen glue applying unit
Company Introduction:
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
